Zosefera za Active Harmonic(AHF-50-0.4-4L-W)

Kufotokozera Kwachidule:

Chiwongola dzanja chapano: 50A
Network: atatu-phase four-waya system
Mphamvu yamagetsi: AC400V (-40% ~ + 15%)
Kuyika: Wall wokwezedwa

Zosefera zogwira ntchito zimachepetsa kapena kuthetsa kusokonekera kwa ma harmonic mumagetsi, kuwonetsetsa kuti mphamvu yamagetsi ikugwirizana ndi miyezo yamakampani ndikuwongolera magwiridwe antchito komanso kudalirika kwamagetsi.
Zoyenera kuzinthu zopangira mafakitale, nyumba zamalonda, machitidwe opangira mphamvu zowonjezera, zipatala, malo opangira deta
Zoyikidwa pakhoma kuti zikhale zosavuta komanso zosavuta kuyika.

- Kuchepetsa kwa 2 mpaka 50 kwa harmonic

- Malipiro a nthawi yeniyeni

- Mapangidwe a modular

- Tetezani zida kuti zisatenthedwe kapena kulephera

- Kupititsa patsogolo magwiridwe antchito a zida


Tsatanetsatane wa Zamalonda

FAQ

Zolemba Zamalonda

资源 12@2x

Petrification

Gwero la Harmonic: thyristor, inverter

Zida za Harmonic: zimakupiza liwiro, mapampu amitundu yonse

资源 9@2x

Makampani a Data Center

Gwero la Harmonic: UPS, rectifier

Zida za Harmonic: UPS, air conditioning, elevator, magetsi a LED

资源 3@2x

Kupanga magalimoto

Gwero la Harmonic: inverter, rectifier

Zida za Harmonic: makina owotcherera, makina otumizira

资源 11@2x

Kupanga mphamvu zotayira zinyalala

Gwero la Harmonic: rectifier, inverter

Zida za Harmonic: mapampu amitundu yonse

资源 8@2x

Chithandizo cha zimbudzi

Gwero la Harmonic: inverter, rectifier

Zida za Harmonic: fan, pampu

资源 5@2x

Mulu wolipiritsa galimoto

Harmonic source: rectifier

Chipangizo cha Harmonic: charger

资源 4@2x

Semiconductor

Gwero la Harmonic: thyristor, ng'anjo ya kristalo imodzi

Zida za Harmonic: quartz crucible, thyristor

资源 7@2x

Chipatala

Gwero la Harmonic: rectifier, UPS, inverter

Zida za Harmonic: zida zolondola, nyali za LED, zokwezera, UPS

资源 1@2x

Makampani opanga mapepala

Gwero la Harmonic: nyali ya halogen, inverter

Zida za Harmonic: pulper, kudula mapepala, kuponderezana, nyali ya arc

资源 10@2x

Kusungunula chitsulo ndi chitsulo

Gwero la Harmonic: rectifier, inverter, thyristor

Zida za Harmonic: ng'anjo yophulika, ng'anjo yapakati pafupipafupi

资源 6@2x

Pobowola nsanja

Gwero la Harmonic: rectifier, inverter

Zida za Harmonic: AC jenereta seti, mpope

资源 2@2x

Zomangamanga zamakono

Gwero la Harmonic: rectifier, inverter

Zida za Harmonic: magetsi osinthira, ma air conditioning, elevator, LED

Munda Wofanana Wogwiritsa Ntchito

ProfessionTransformer mphamvu Central compensation capacity kusankha query table
Sitima zapansi panthaka, tunnel, masitima othamanga kwambiri, ma eyapoti Telecommunications, zomangamanga zamalonda, zitsulo, mabanki Makampani azachipatala Kupanga magalimoto, kupanga zombo Chemical, mafuta Makampani opanga zitsulo
Kusintha pafupipafupi kwa ma harmonic current 15% 20% 25% 30% 35% 40%
200 kVA 50 A 50 A 100A 100A 100A 100A
250 kVA 50 A 100A 100A 100A 150A 150A
315 kVA 100A 100A 150A 150A 150A 200A
400 kVA 100A 150A 150A 200A 200A 250A
500 kVA 100A 150A 200A 200A 250A 300A
630 kVA 150A 200A 250A 300A 350A 400A
800 kVA 200A 250A 300A 350A 450A 500A
1000 kVA 200A 300A 400A 450A 550A 600A
1250 kVA 300A 350A 450A 550A 650A 750A
1600 kVA 350A 500A 600A 700A 850A 950A
2000 kVA 450A 600A 750A 900A 1050A 1200A
2500 kVA 550A 750A 900A 1150A 1300A 1500A
*Zindikirani: Mphamvu ya AHF yomwe ili pamwambapa imapezeka pamtundu wa 80 peresenti.M'mapulojekiti enieni, mphamvu ya AHF imapezedwa molingana ndi kuyerekeza mtengo wa katundu wolemetsa ndi 80 % katundu patebuloli.
* Gome ili ndi lachisankho chokhacho

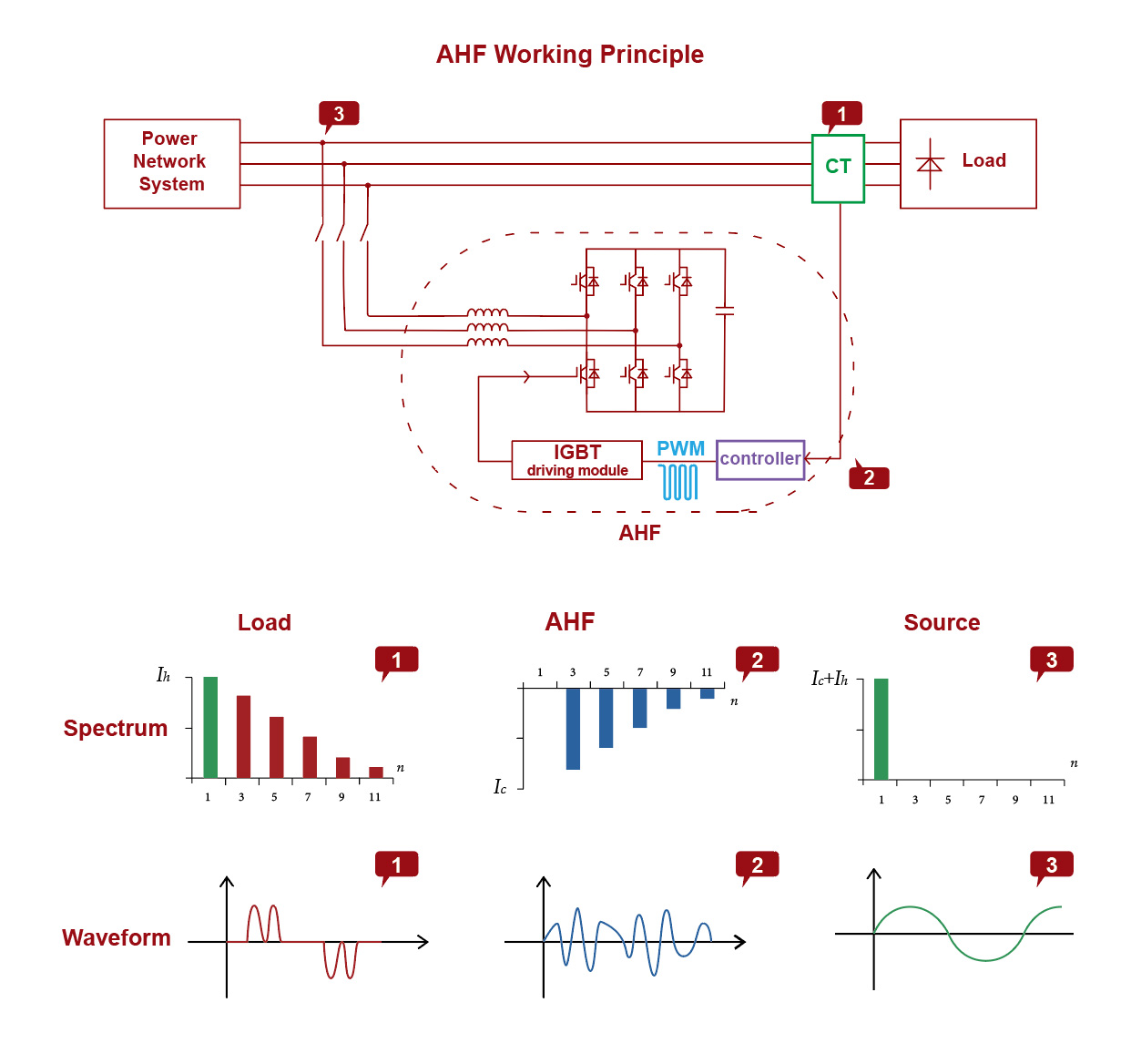

Mfundo Yogwirira Ntchito

CT yakunja imazindikira katundu wapano, DSP monga CPU ili ndi masamu owongolera anzeru, imatha kutsatira malangizo apano, imagawanitsa katunduyo kukhala mphamvu yogwira komanso mphamvu yogwira ntchito pogwiritsa ntchito FFT yanzeru, ndikuwerengera zomwe zili mu harmonic mwachangu komanso molondola.Kenako imatumiza chizindikiro cha PWM ku board yamkati ya IGBT kuti muwongolere IGBT ndikuyimitsa pafupipafupi 20KHZ.Pomaliza imatulutsa chipukuta misozi chosiyana pakusintha kwa inverter, nthawi yomweyo CT imazindikiranso zomwe zatuluka komanso zoyipa zomwe zimapita ku DSP.Kenako DSP imapitiliza kuwongolera kotsatira kuti ikwaniritse dongosolo lolondola komanso lokhazikika.

AHF2
ahf1

Mfundo Zaukadaulo

TYPE 220V Series 400V Series 500V Series Zithunzi za 690V
Adavotera chipukuta misozi 23A 15A, 25A, 50A
75A, 100A, 150A
100A 100A
Mwadzina voteji AC220V
(-20%~+15%)
AC400V
(-40%~+15%)
AC500V
(-20%~+15%)
AC690V
(-20%~+15%)
Adavoteledwa pafupipafupi 50/60Hz ± 5%
Network Gawo limodzi 3 gawo 3 waya / 3 gawo 4 waya
Nthawi yoyankhira <40ms
Kusefa kwa Harmonics 2nd mpaka 50th Harmonics, Chiwerengero cha chipukuta misozi chikhoza kusankhidwa, ndipo kuchuluka kwa malipiro amodzi kungasinthidwe.
Harmonic chipukuta misozi > 92%
Kutha kusefa kosalowerera ndale / Kukhoza kusefa kwa 3 gawo 4 waya osalowerera waya mzere ndi 3 nthawi za gawo fiitering
Makina abwino > 97%
Kusintha pafupipafupi 32 kHz pa 16kHz pa 12.8kHz 12.8kHz
Ntchito Kulimbana ndi ma harmonics
Manambala mofanana Palibe malire.Module imodzi yowunikira yapakati imatha kukhala ndi ma module amphamvu 8
Njira zolankhulirana Njira ziwiri zoyankhulirana za RS485 (kuthandizira GPRS/WIFI kulumikizana opanda zingwe)
Alfitude popanda kunyoza <2000m
Kutentha -20 ~ + 50 ℃
Chinyezi <90%RH,Kutentha kochepa pamwezi ndi 25°C popanda condensation pamtunda
Mulingo woyipitsidwa Pansi pa mlingo III
Chitetezo ntchito Kuteteza mochulukira, chitetezo champhamvu kwambiri, chitetezo chamagetsi mopitilira muyeso, kulephera kwamagetsi, kuteteza kutentha kwambiri, kutetezedwa kwanthawi yayitali, chitetezo chafupipafupi, etc.
Phokoso <50dB <60dB <65dB
kukhazikitsa Choyika / Khoma
Munjira ya mzere Kubwerera kumbuyo(mtundu wachiyika), kulowa pamwamba (mtundu wokwera pakhoma)
Gawo lachitetezo IP20





Kutchula dzina

AHF品牌

Mawonekedwe a Zamalonda

4w ndi
4W ndi 2
